Sandwich Panel Montaj Sistemi

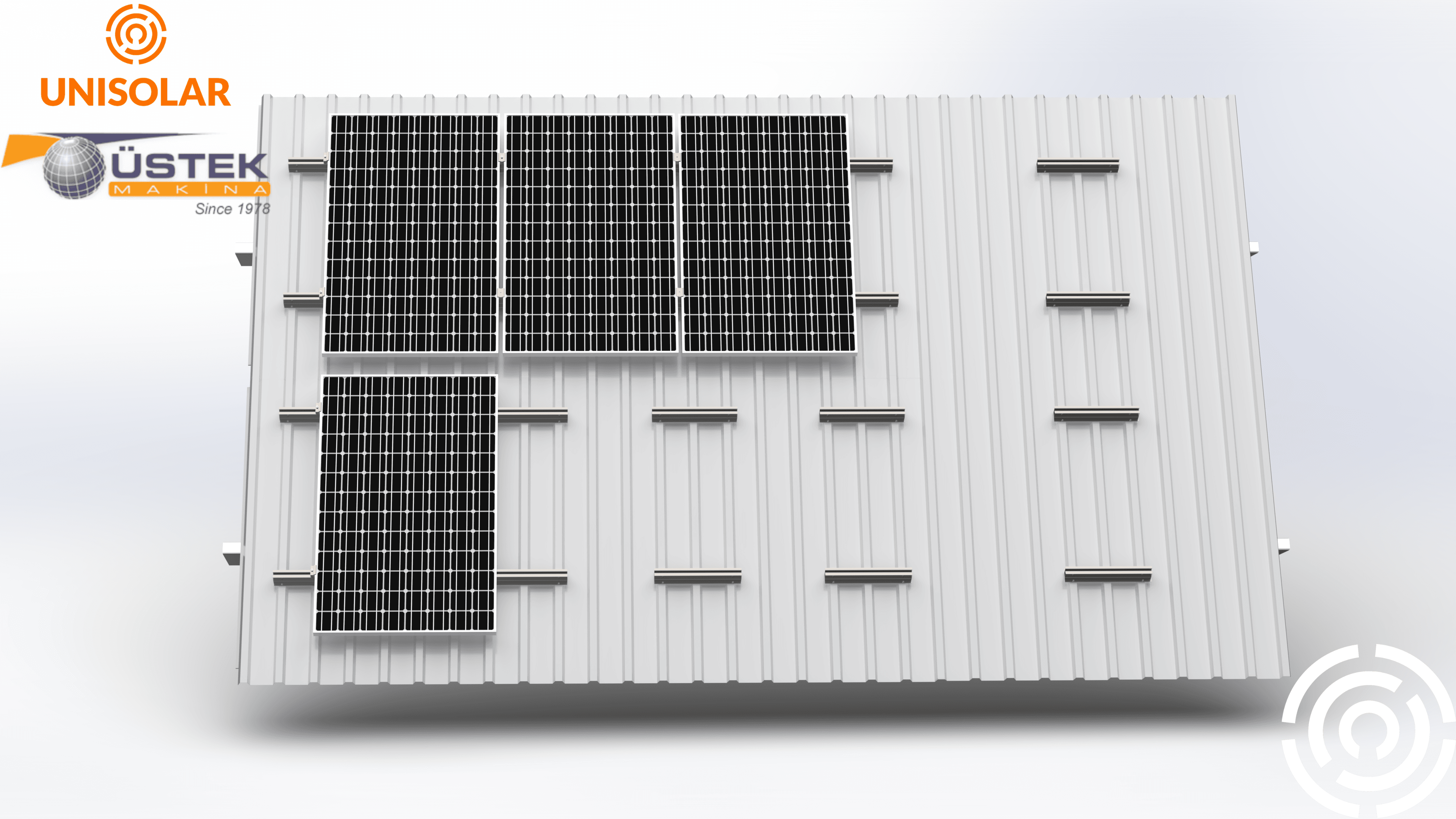

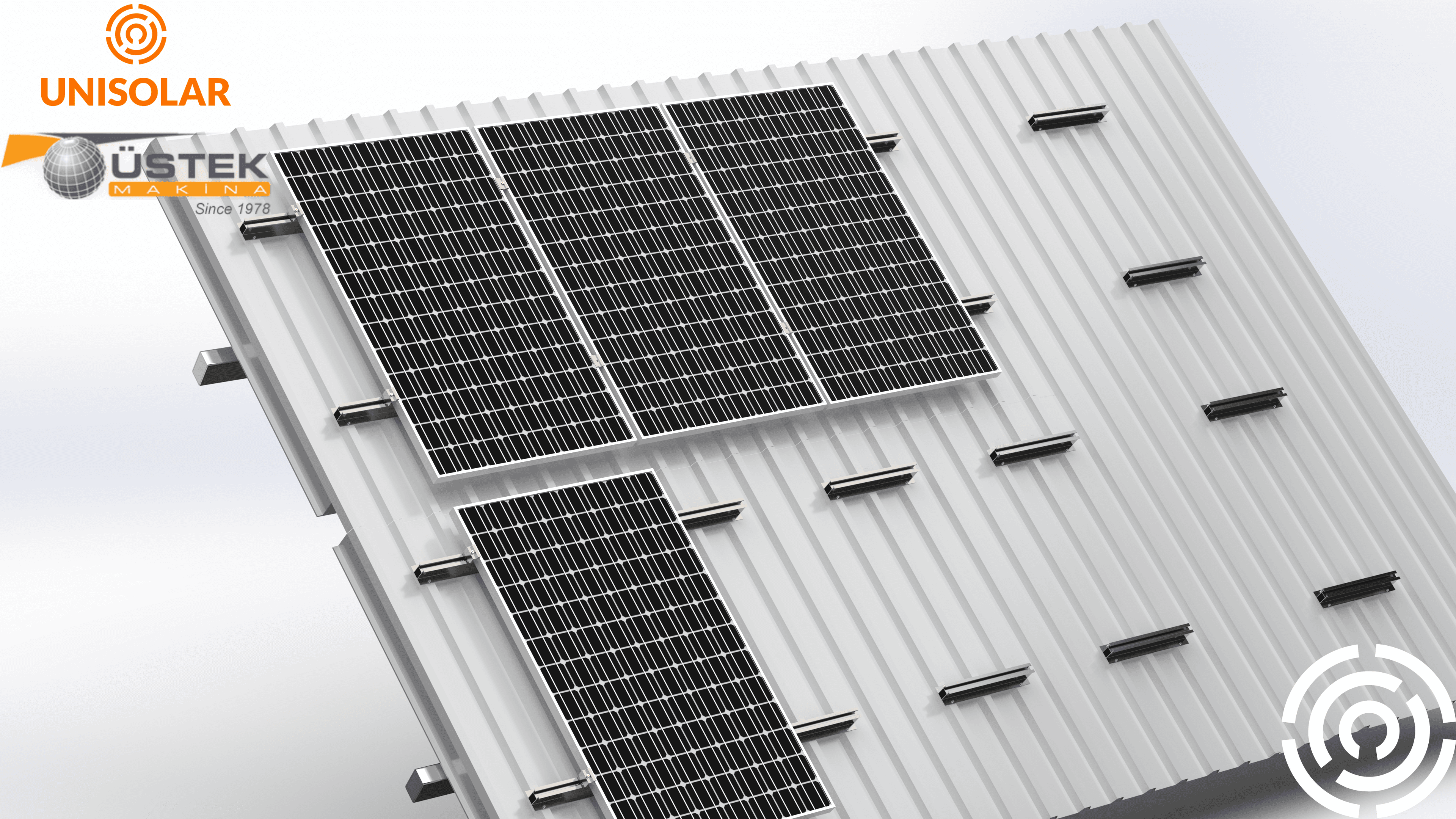

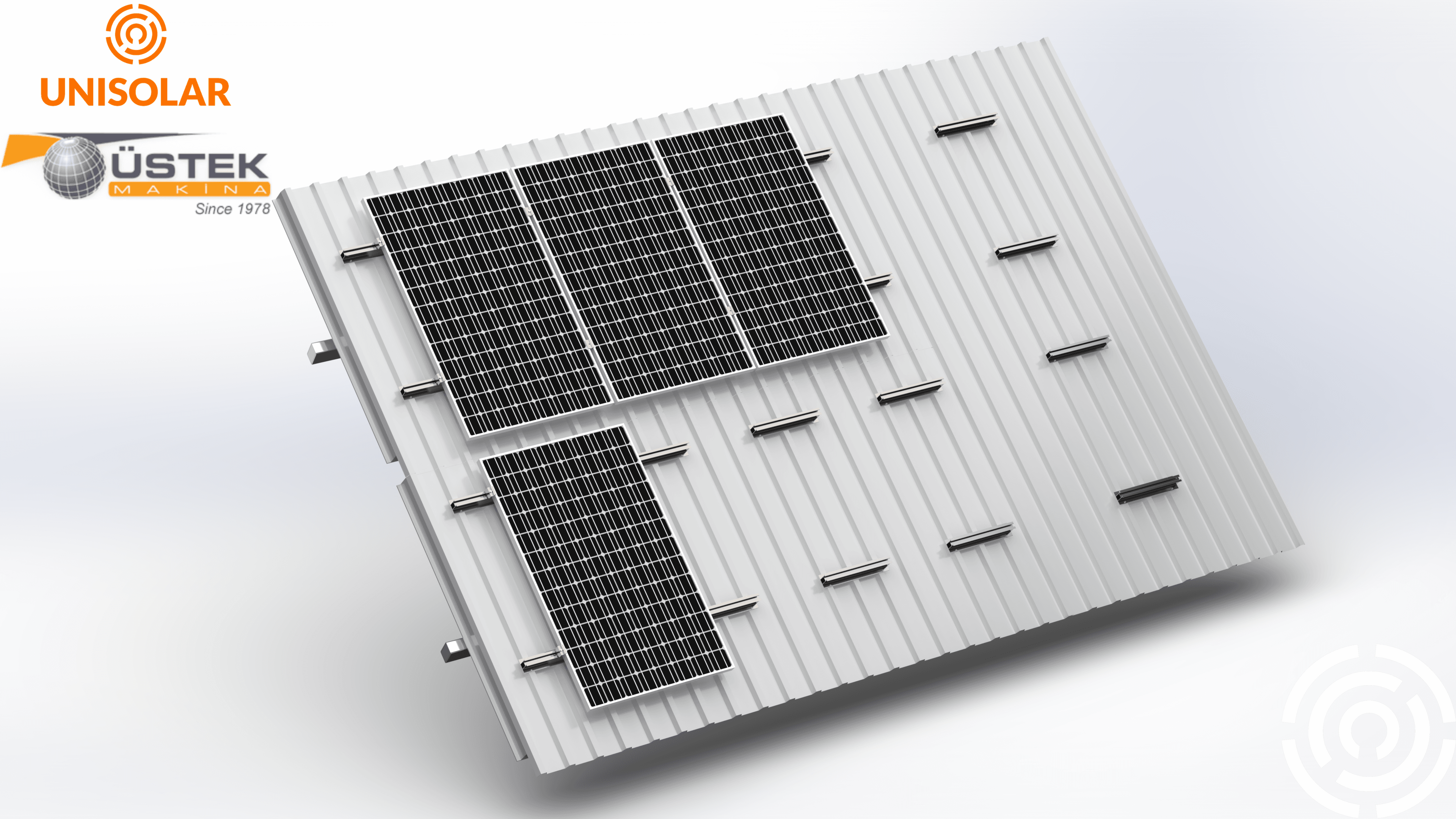

UNIRAIL is an innovative system specifically designed for easy installation. Pre-drilled openings for drill use speed up the installation process, saving both time and labor. Its sturdy structure and enhanced material thickness provide superior durability against heavy snow loads. These features ensure both the safety and long term performance of your system, making it a reliable solution, especially under extreme weather conditions
Usage Area:
Trapezoidal Roof, Sandwich Roof
Compatible Solar Panel Sizes:
L: 1550-2450mm / W: 950-1200mm / H: 30-42mm
Fixing to Roof Cladding:
Gasketed Sharp-Tipped Screw
Materials:

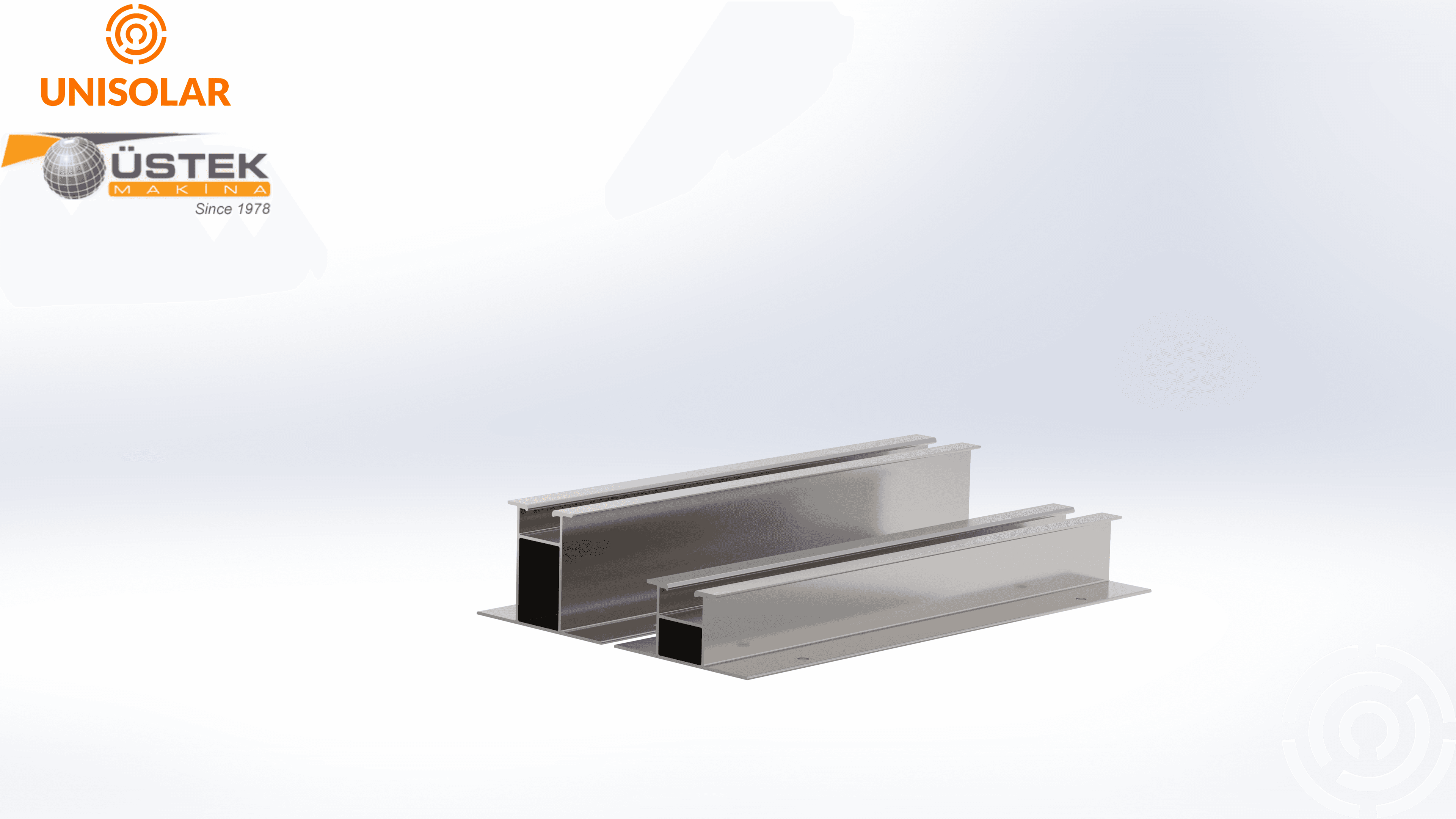

Rails: AL 6063-T6 / Clamps: AL 6063-T6
Gaskets: EPDM Rubber / Bolts: Stainless Steel A2-70
Technical Specifications:
Rib spacing should be checked before planning. Horizontal placement is recommended.
Length Options:
Standard: 100 mm
